Twin screw gearbox

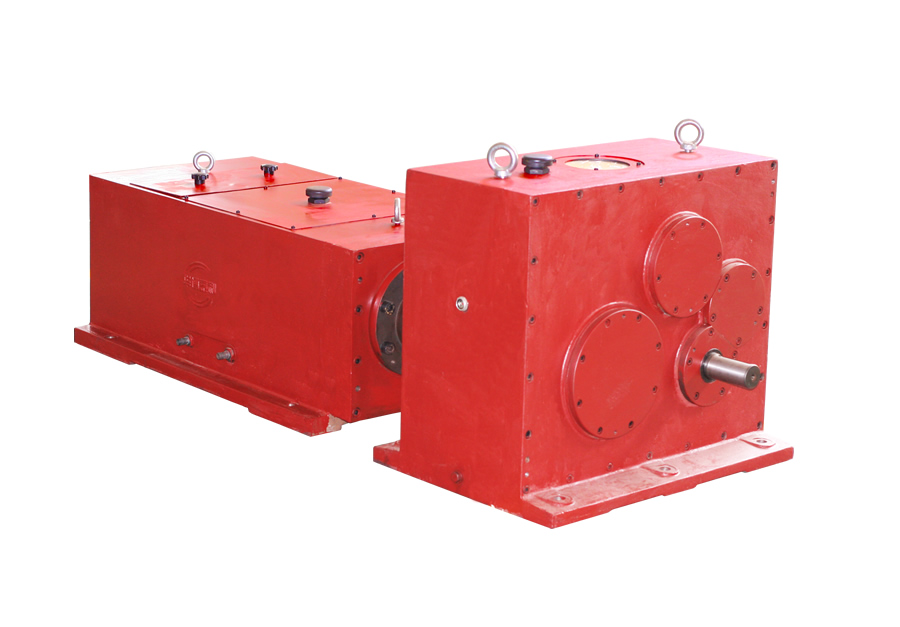

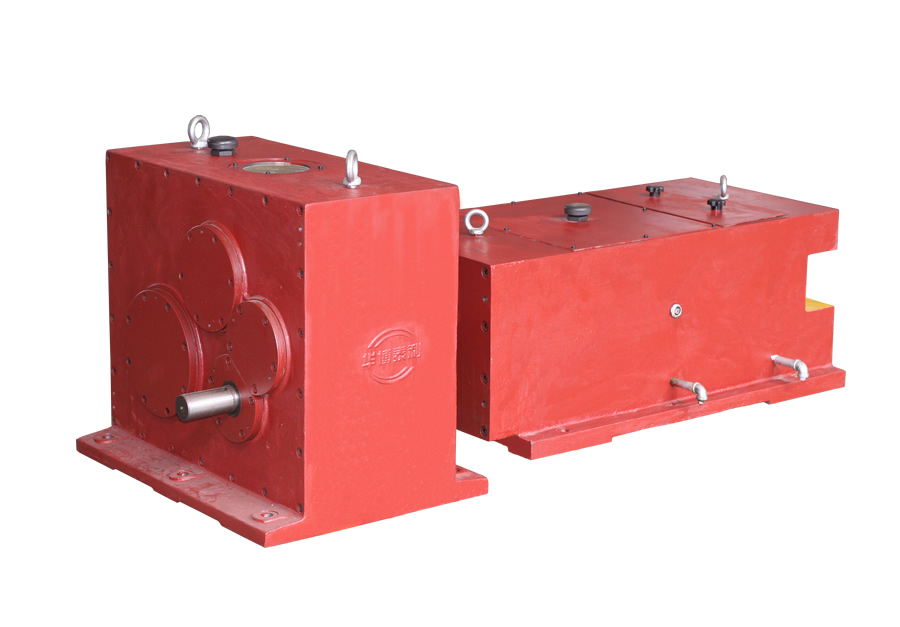

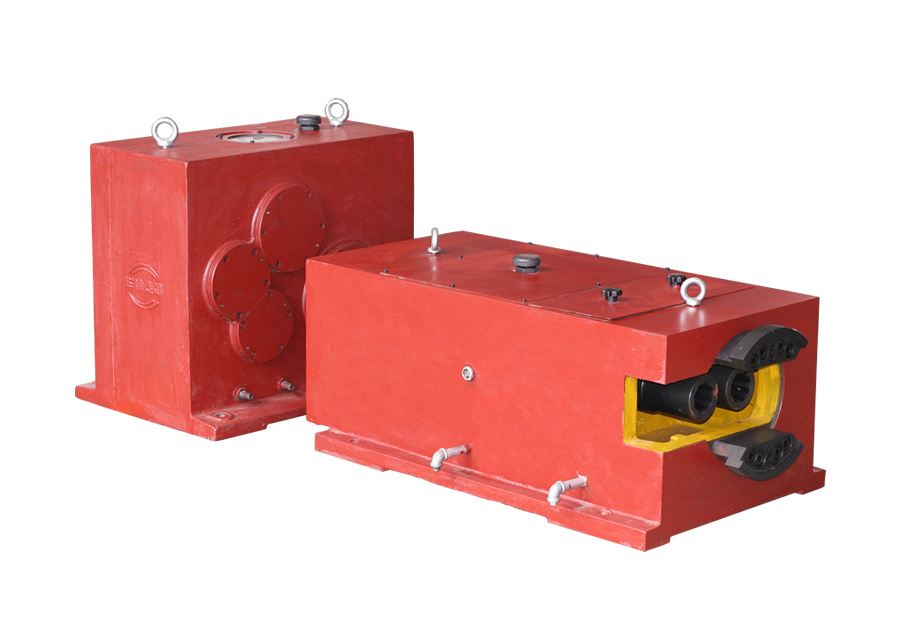

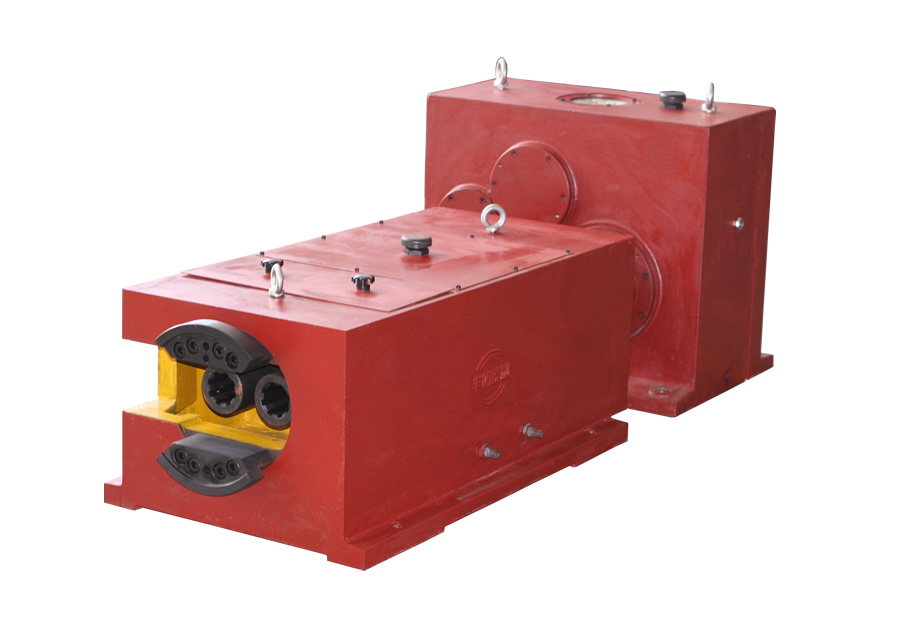

Gearbox for SZ series conical twin screw extruder

Product ID：Twin screw gearbox
Tel: 0086-18168811055
Email: sales@cztili.com
13358163958
Whatsapp: 13358160396
18452420136
Time: 2021-09-13 03:11:33

In order to choose the right gearbox, you just need to do two steps as follow:

1. Please check the specifications according to the drawing：

Item NO.	A	A2	A3	A4	H	E	E1	C(H)7	C1	C2	C3	A5	H1	Z1 Z2	H2	H3	B1	B2	n-d1	d	L	L1	L2
SZ45	500	100	75	765	240	40	10	Φ270	150	Φ270	Φ290	150	60	M18*1.5	30	390	335	380	4-Φ16	Φ16	1388	135	90.5
SZ50	580	70	75	722	240	40	10	Φ210	150	Φ270	Φ290	160	80	M18*1.5	35	390	440	490	4-Φ16	Φ16	1390	102.09	98.8
SZ55	660	100	75	860	250	40	10	Φ230	160	Φ290	Φ318	160	80	M18*1.5	35	430	510	560	4-Φ16	Φ16	1560	190	109
SZ65	770	80	75	910	250	40	10	Φ253	170	Φ260	Φ280	180	85	M18*1.5	40	430	550	590	4-Φ16	Φ16	1650	205	115
SZ80	800	120	85	1070	280	40	10	Φ302	170	Φ300	Φ340	180	120	M18*1.5	45	465	605	655	4-Φ16	Φ16	1995	234	138
SZ92	950	200	125	1350	360	50	15	Φ372	180	Φ370	Φ412	250	150	M18*1.5	60	620	650	720	4-Φ22	Φ16	2402	275	164

Item NO.	L3	L4	L5	A6	A7	A8	A9	n-d1	d(h6)	M	H4	L6	E2	E3	B3	B4	B5	H6	H7	H8	F	(G)	N	r°	D
SZ45	133	60	15	255	255	558	95	4-Φ22	Φ32	162	180	58	10	35	300	360	100	30	534	30	190	315	202	2°35'52"	8-48×42×8
SZ50	122	40	15	280	280	705	105	4-Φ22	Φ38	175	180	80	10	41	360	430	125	30	652	30	197.5	290	212	2°58'12"	8-54.5×47×9.2
SZ55	138	65	15	300	300	720	100	4-Φ22	Φ42	180	200	82	12	45	350	400	100	30	740	35	200	228	240	2°36'14"	8-60×52×10
SZ65	150	70	15	350	350	850	170	4-Φ22	Φ55	185	225	90	16	59	380	450	140	35	720	30	324	305	240	2°11'16"	8-65×56×10
SZ80	200	95	15	335	335	835	140	4-Φ22	Φ55	210	250	110	16	59	495	585	140	40	788	40	249.5	350	324.5	2°00'18"	8-73×62.8×12.15
SZ92	230	105	20	395	395	980	180	4-Φ30	Φ60	245	160	105	18	64	500	600	160	42	860	40	250	575	362.5	1°00'3.64"	10-102×92×14

2. Confirm Main Technical Feature

	SZ45	SZ50	SZ55	SZ65	SZ80	SZ92
Input Speed r/min	1500
OutputSpeed r/min	44.9	37.5	38	38.9	39.2	40.2
Input Power kw	18.5	22	30	37	55	110
Output Torque of Single Shaft N.m	1972	2779	3820	4518	6786	13130
Included Angle of Distribution Shafts	2° 40’	2° 58’12“	2°36’14”	2°11’16“	2°0’18”	1°00’3.64”
