F series parallel-shaft helical gearmotors
F Series reducers are designed and manufactured on the basis of modular combination system.
Product Description
F helical parallel speed reduction gear box are based on the building block design,so it's convenient for them to fit all types of motors or connect with other power input.The same type of combine can fit motors with different power,so that it's possible for different types of machines to combine or connect.
F series speed gear reducer is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stages helical gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the process of carburizing and quenching, grinding
1.Technical data:
| Product Name | F Series Foot Mounted Parallel Shaft Gearbox with Inline Variable Frequency Motor |
| Gear material | 20CrMnTi alloy steel |
| Color | Blue Silver Customerized |
| Case Material | Cast iron HT200 |
| Gear Processing | Grinding finish by HOFLER Grinding Machines |
| Noise Test | Below 65dB |
| Brand of bearings | C&U bearing, ZWZ,LYC, HRB, NSK ,etc |
| Brand of oil seal | NAK or other brand |
| Temp. rise (MAX) | 40ºC |
| Temp. rise (Oil)(MAX | 50ºC |
| Vibration | ≤20µm |
| Housing hardness | HBS190-240 |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Machining precision of gears | 5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | Carburizing, Quenching etc |
| Efficiency | 95%~96% (depends on the transmission stage) |
| Backlash | ≤20Arcmin |
2. Installation type and output mode:
bottom seated type flange type installation, solid,hollow shaft output.
3. Input mode:
direct motor, shaft input and connecting flange input.
4. Reduction ratio:
3.77-23000
5. Average efficiency:
95%
6.Technical parameters:
parallel output
Power: 0.12KW~200KW
Torque: 3.5-21700N.m
Output speed: 5-352rpm

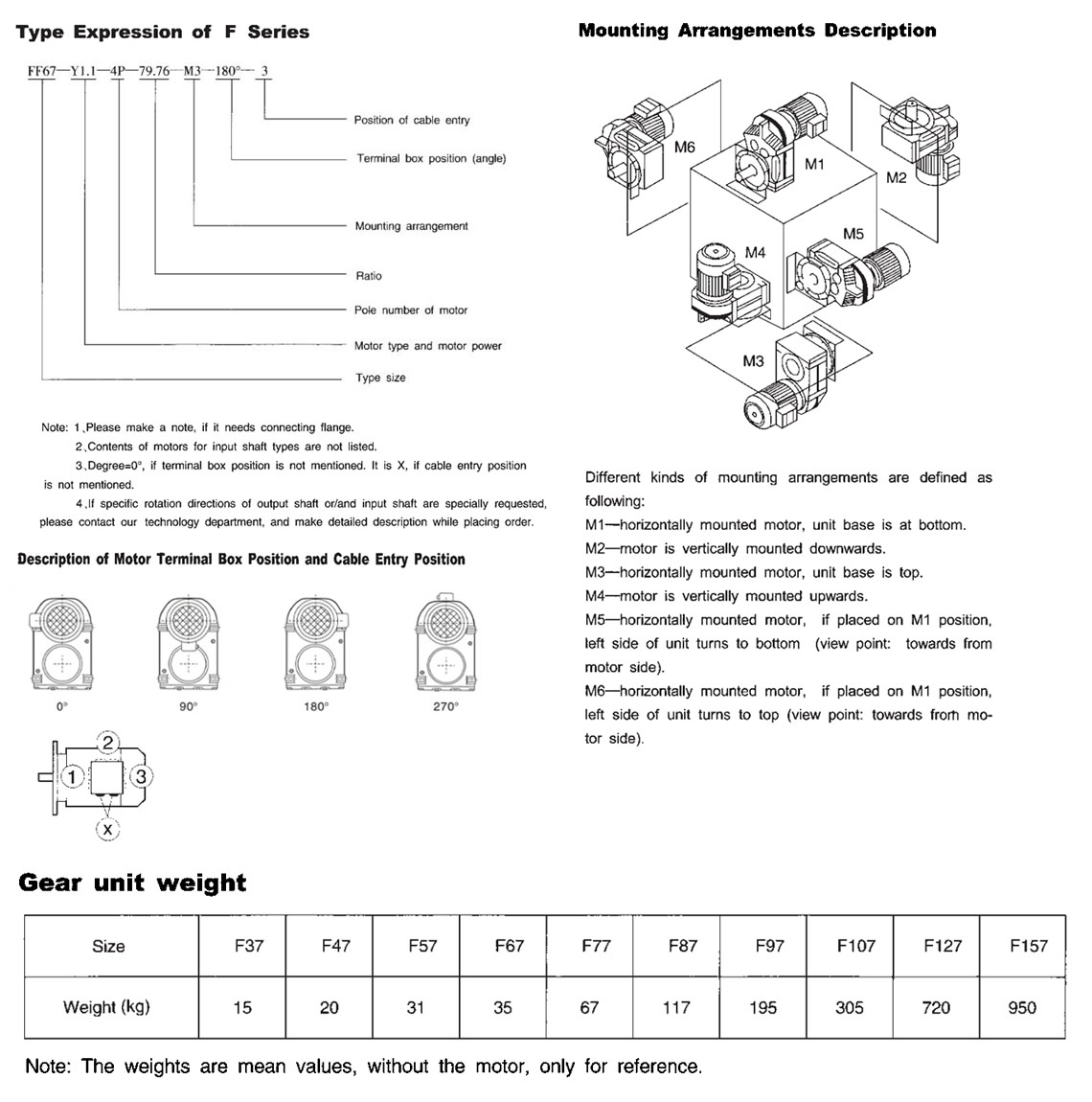

7. Model of F series reducer:
F37, 47, 57, 67, 77, 87, 97, 107,127,157
FA37, 47, 57, 67, 77, 87, 97, 107,127,157
FF37, 47, 57, 67, 77, 87, 97, 107,127,157
FAF37, 47, 57, 67, 77, 87, 97, 107,127,157
8. Input Method:
Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor

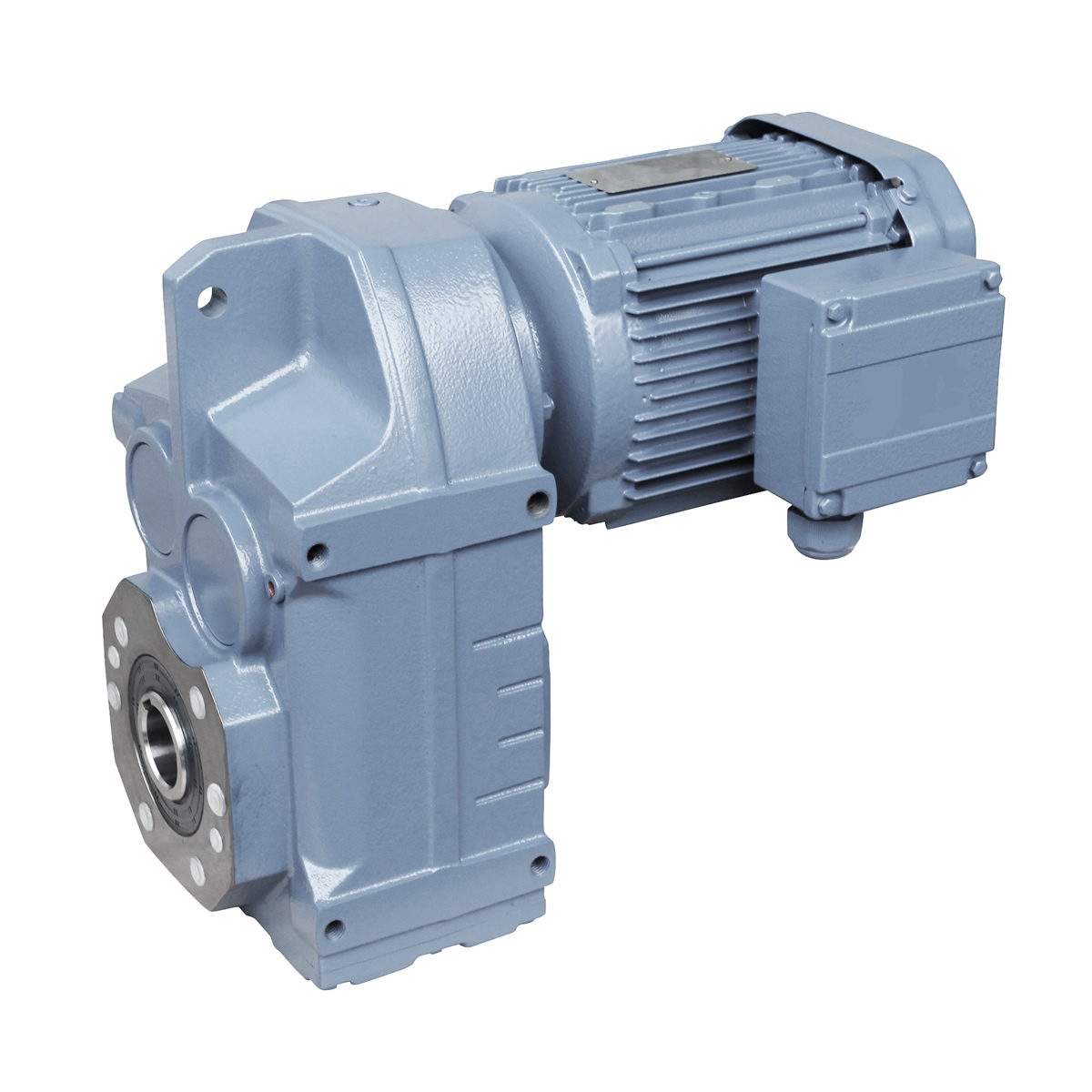

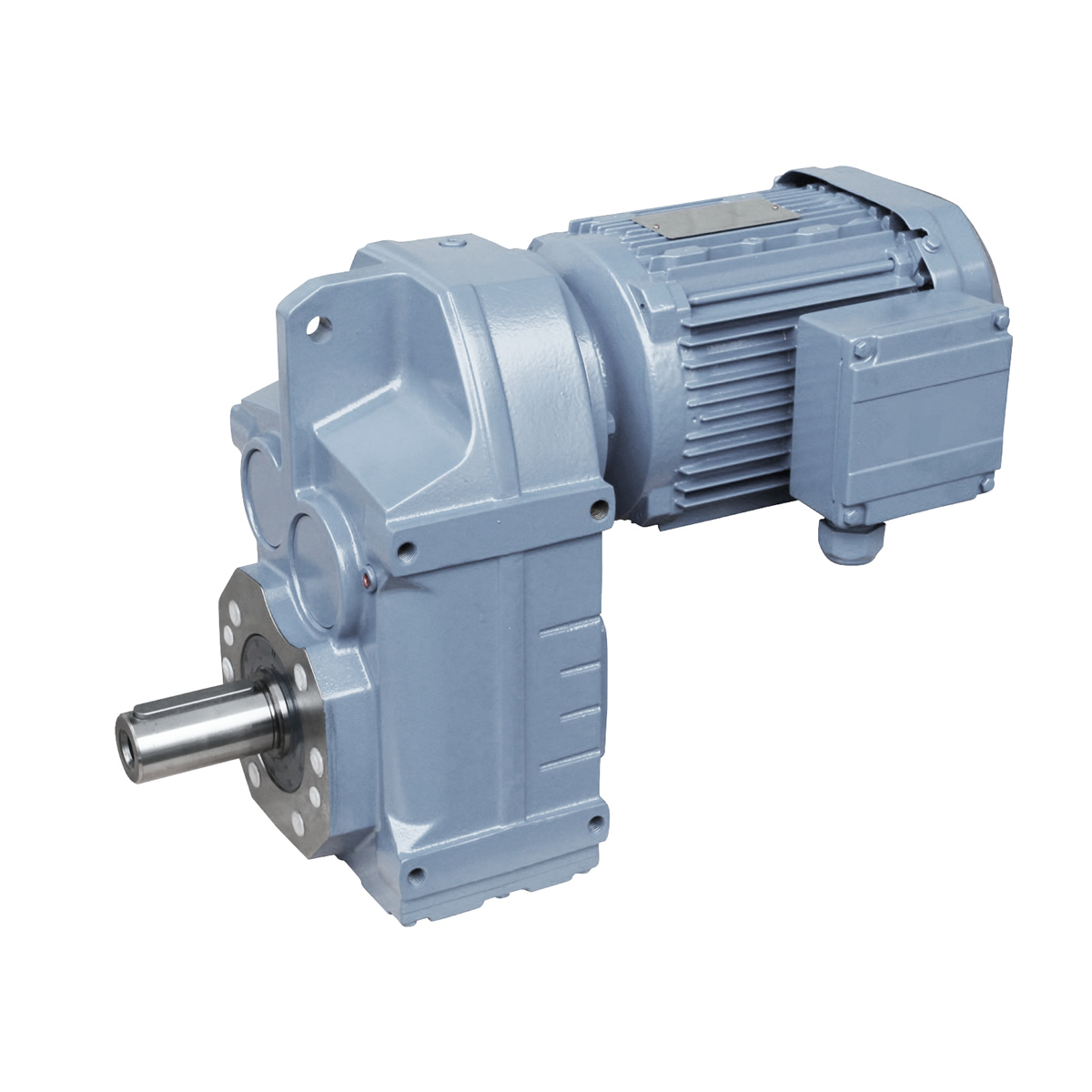

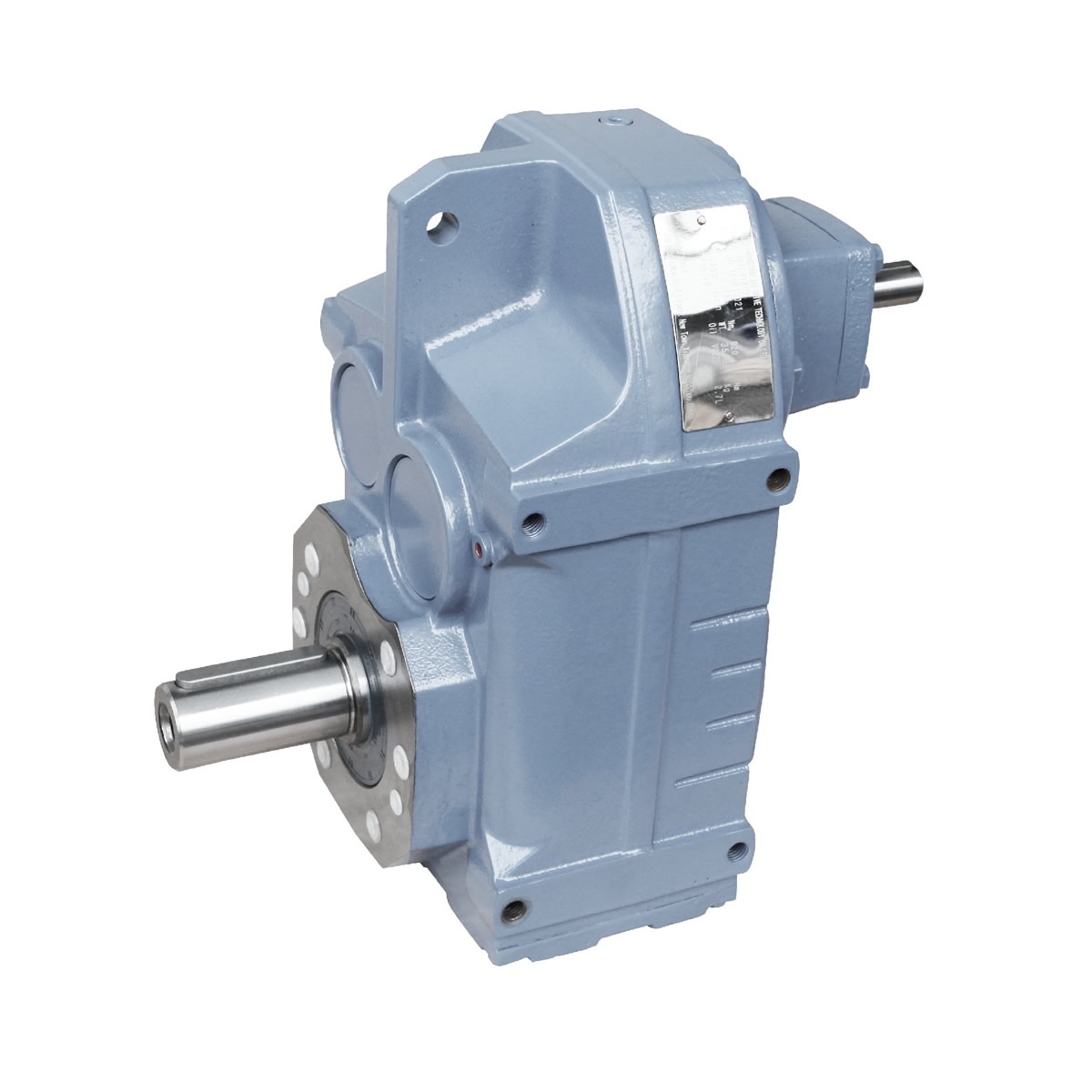

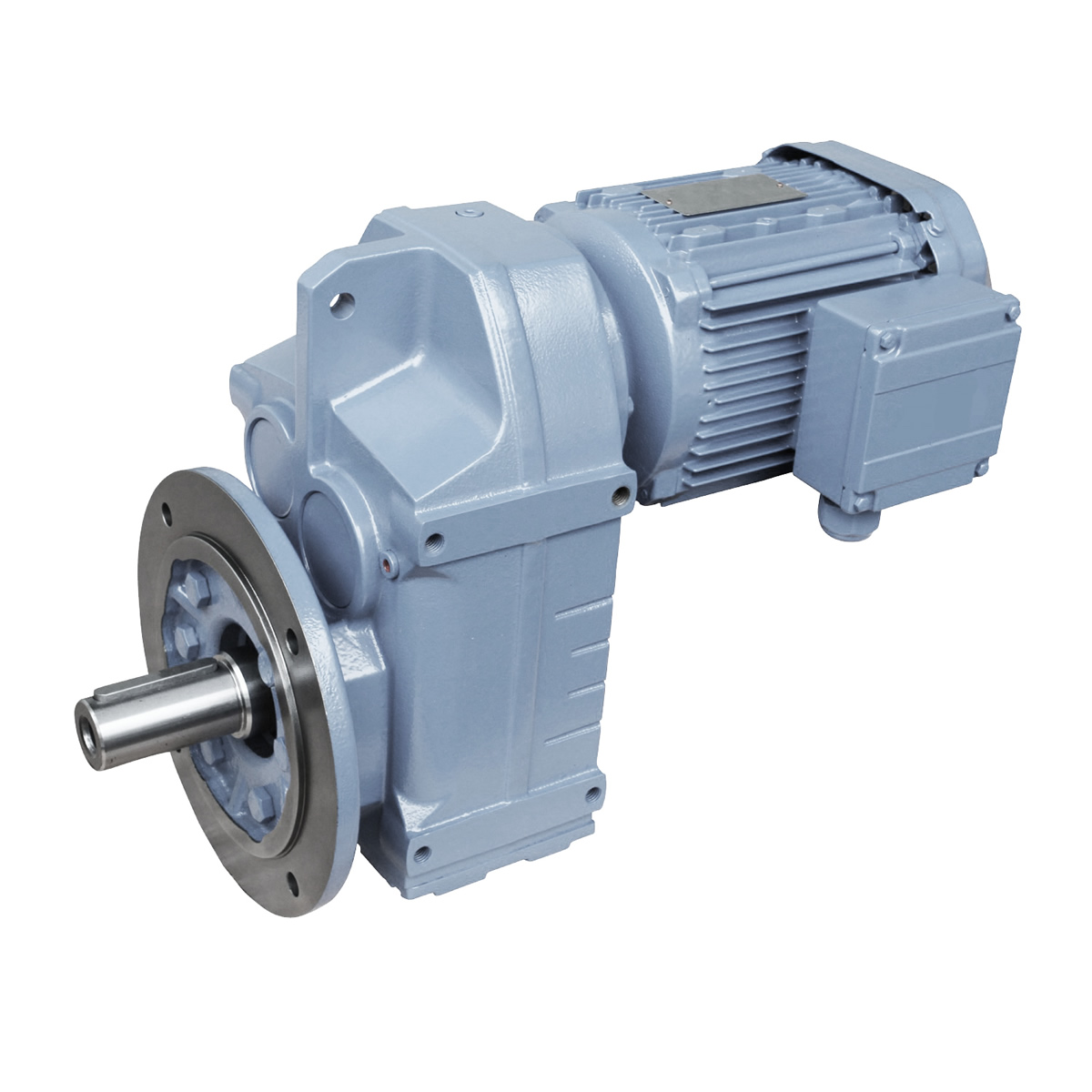

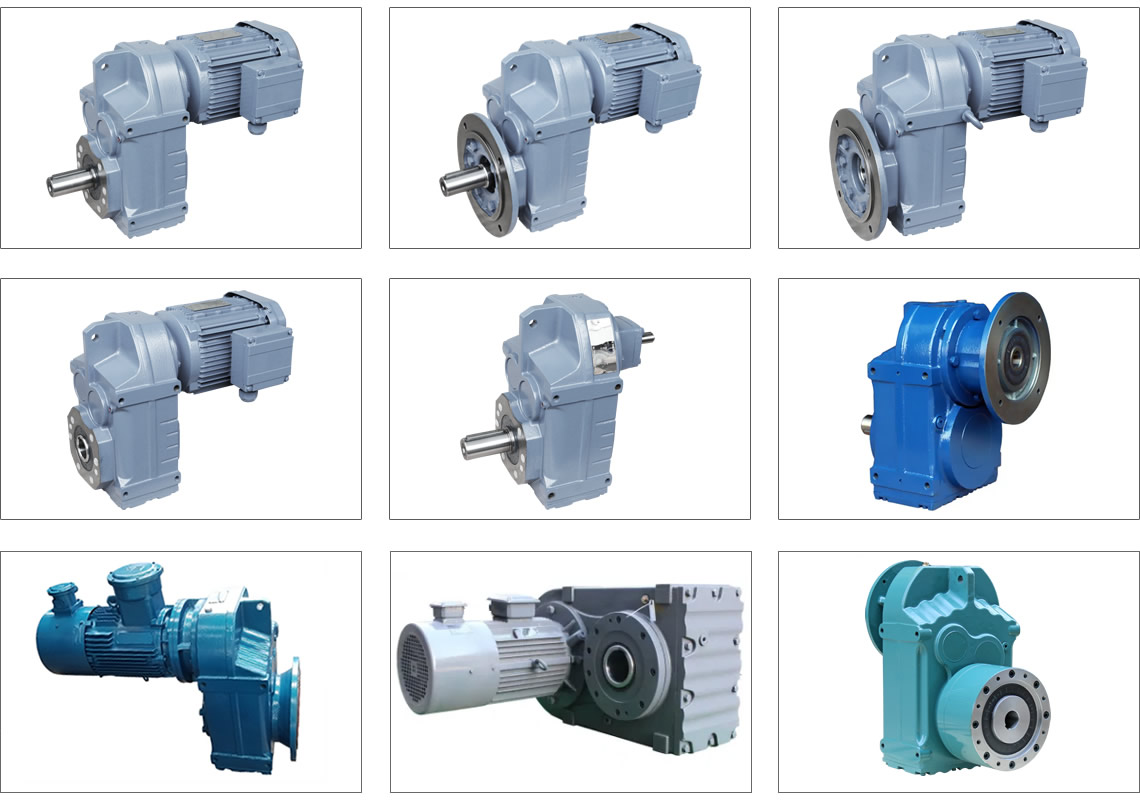

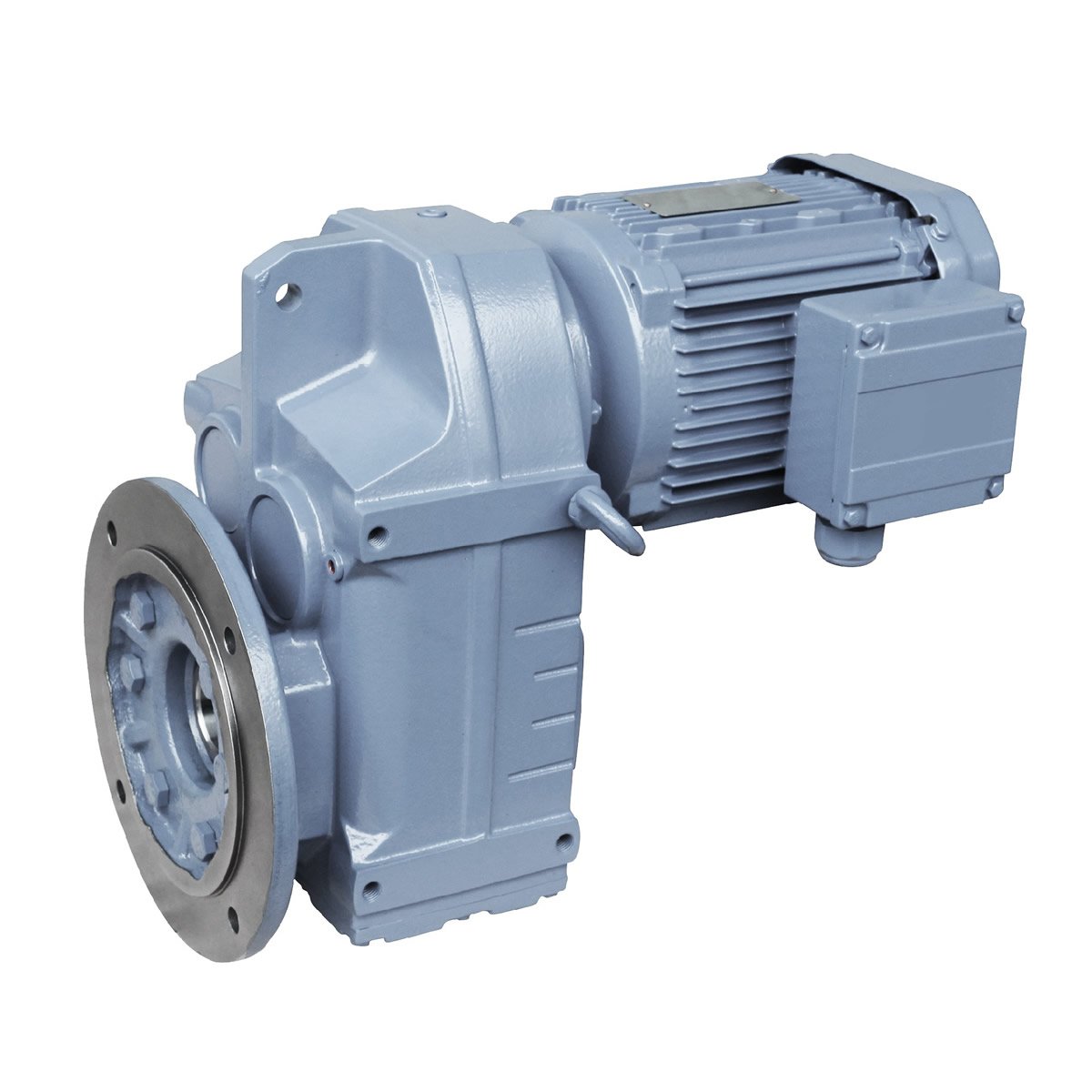

Detailed Photos
Certifications
Packaging & Shipping
Installation Instructions
Company Profile
< ABOUT TILI
< WORKSHOP
< QUALITY CONTROL
FAQ
Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing various series of reducer.
Q 2:Can you do OEM?
A:Yes, we can. We can do OEM for all the customers .if you want to order NON-STANDERD speed reducers,pls provide Drafts, Dimensions, Pictures and Samples if possible.
Q 3: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.
Q 4: Do you have inspection procedures for reducer?
A:100% self-inspection before packing.
Q 5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Q 6:How to choose a gearbox? What if I don't know which gear reducer I need?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide,the technical information of required output torque, output speed and motor parameter etc. Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q 7: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, Size , Transmission Ratio, input and output type, input flange, mounting position, motor information and shaft deflection etc. b)Housing color.c) Purchase quantity. d) Other special requirements
Q 8:What is the payment term?
A:You can pay via T/T(30% in advance as deposit before production +70% before delivery
